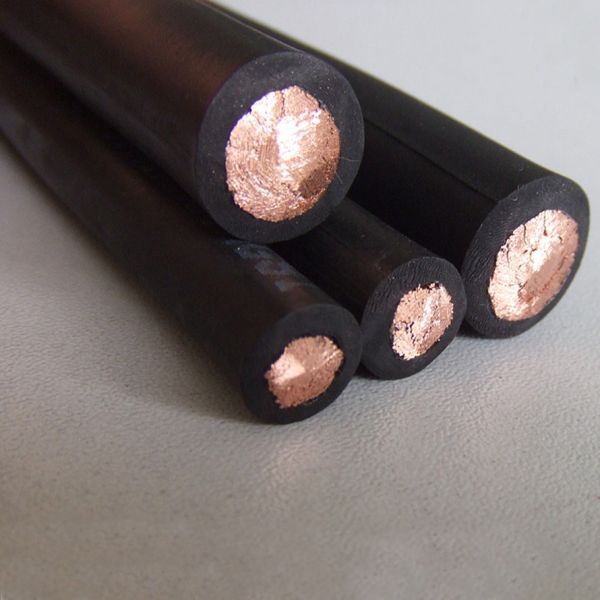

70mm2 Flexible Welding Cable

Standard

IEC 60245

Application

EPR Sheath Flexible Welding Cable 70mm2 is used for connecting the electrode to the welding machine.The products available include:

1) 60245IEC81 - rubber sheathed arc welding electrode cable

2) 60245IEC82 - polychloroprene or other equivalent synthetic elastomer sheathed arc welding electrode cable

Product Description

1) Conductor: class 5 copper, tinned or plain

2) Nominal area: 120mm2

3) Conductor strands/dia.: 1702/0.30

4) Nominal jacket thickness: 2.8mm

5) Overall dia.: 19.0-24.0mm

6) Approx. mass: 1392 kg/km

7) Max D.C. resistance at 20°c: 0.161 Ω/km for plain copper and 0.164 Ω/km for tinned copper
